Ichiro Fujinaga and Jenn Riley

Digital Image Capture of Musical Scores

Resolution Requirements for Web Delivery of Musical Scores

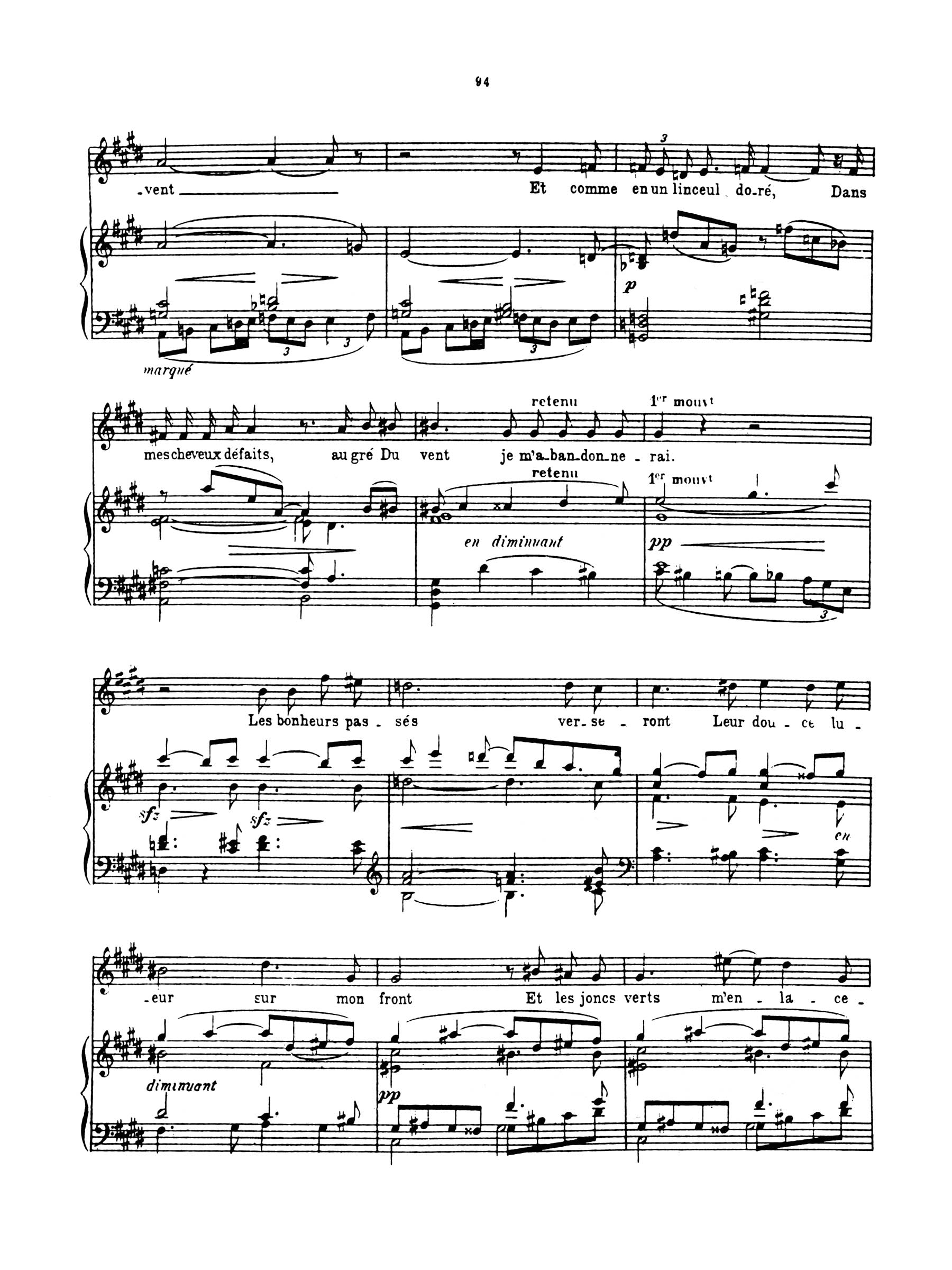

5.5" x 7.5" original paper size
Click image to see full page.
200 dpi reduction, detail
  • 200 dpi reduction, detail.
  • Excellent detail reproduction.
  • Full page is 1100 px x 1500 px, will not fit horizontally on many common screen resolutions.

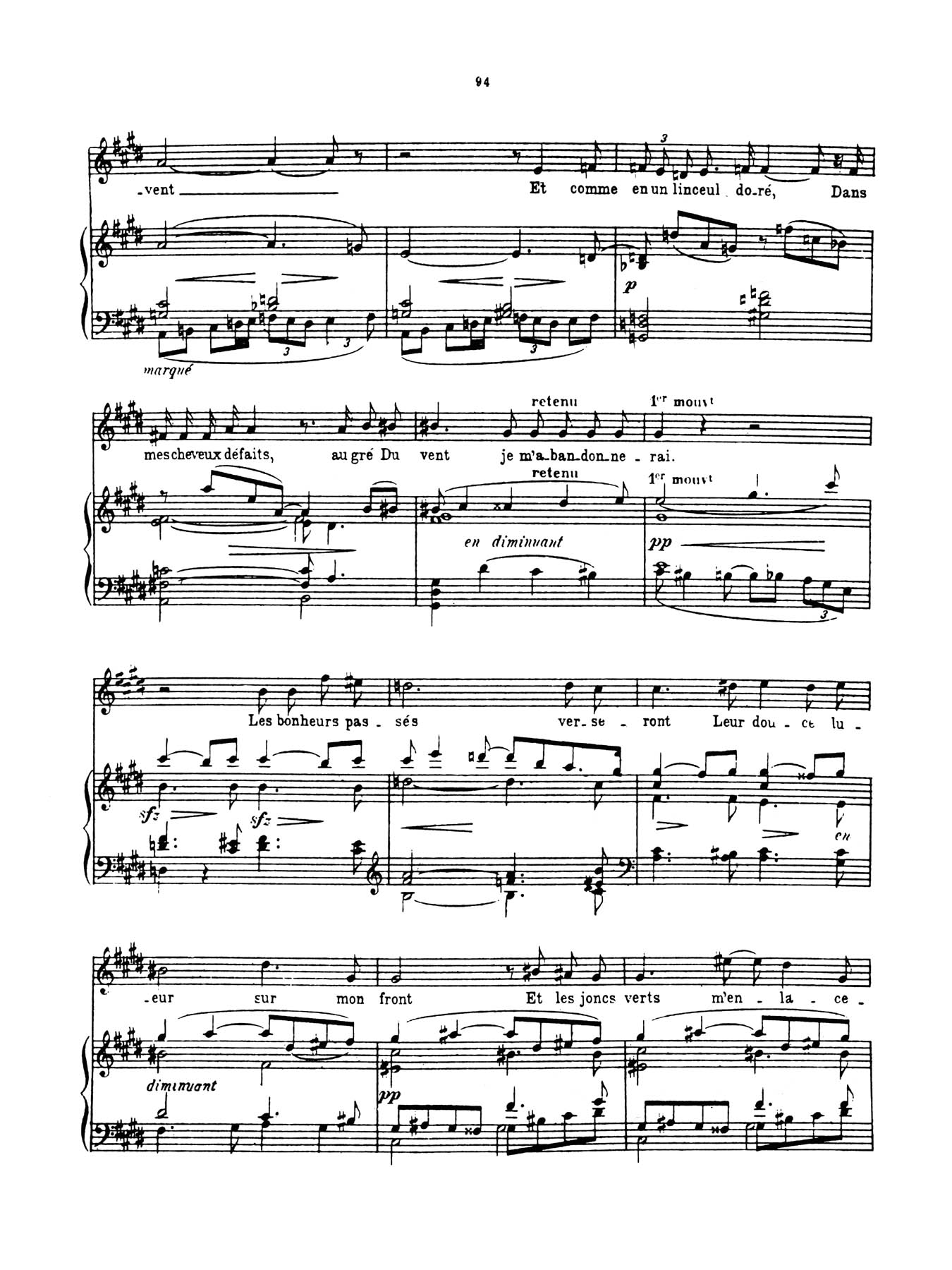

 150 dpi reduction, detail
  • 150 dpi reduction, detail.
  • Good detail reproduction.
  • Full page is 825 px x 1125 px, adequate for most purposes, but still requires horizontal scrolling for smaller screen resolutions.
 100 dpi reduction, detail
  • 100 dpi reduction, detail.
  • Inadequate detail reproduction.
  • Full page is 550 px x 750 px, will fit horizontally on all common screen resolutions.
9" x 12" original paper size
Click image to see full page.

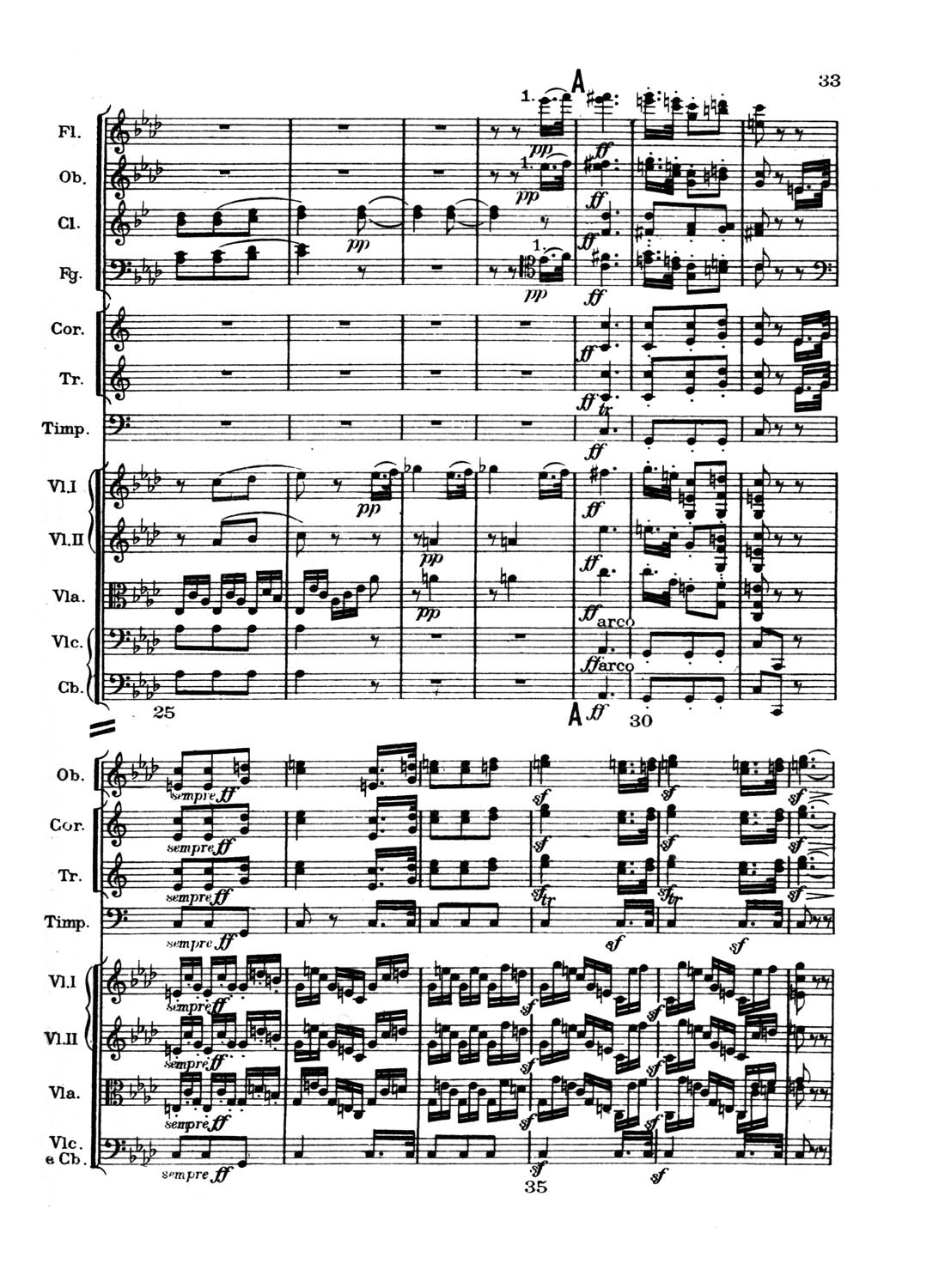

200 dpi reduction, detail
  • 200 dpi reduction, detail.
  • Excellent detail reproduction.
  • Full page is 1800 px x 2400 px, will not fit horizontally on any common screen resolution.
 150 dpi reduction, detail
  • 150 dpi reduction, detail.
  • Excellent detail reproduction.
  • Full page is 1350 px x 1800 px, still requires horizontal scrolling for most common screen resolutions.

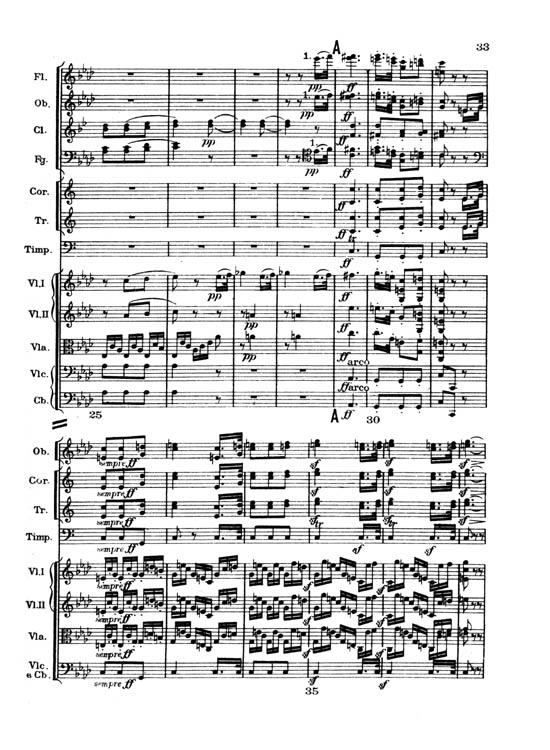

 100 dpi reduction, detail
  • 100 dpi reduction, detail.
  • Adequate detail reproduction.
  • Full page is 900 px x 1200 px, will fit horizontally on many but not all common screen resolutions.
